상세 정보 |
|||
| 상표: | 필립 | 모델: | M2735A M2724B M2736A |
|---|---|---|---|
| 유형: | 미국 및 TOCO | 보증: | 6개월 |
| 패키지: | 판지 포장 | ||
| 강조하다: | Philip fetal probe for fetal monitors,M2735A fetal monitor replacement part,US TOCO fetal probe M2724B |
||
제품 설명

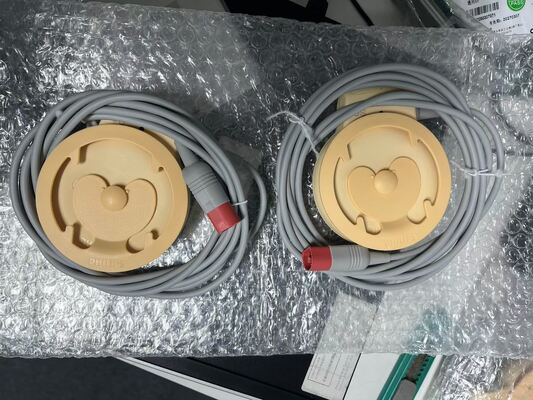

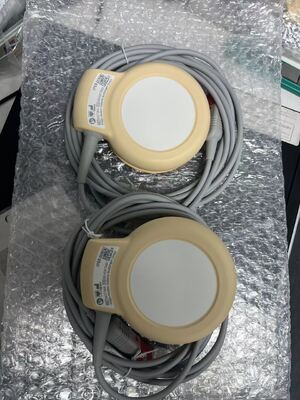

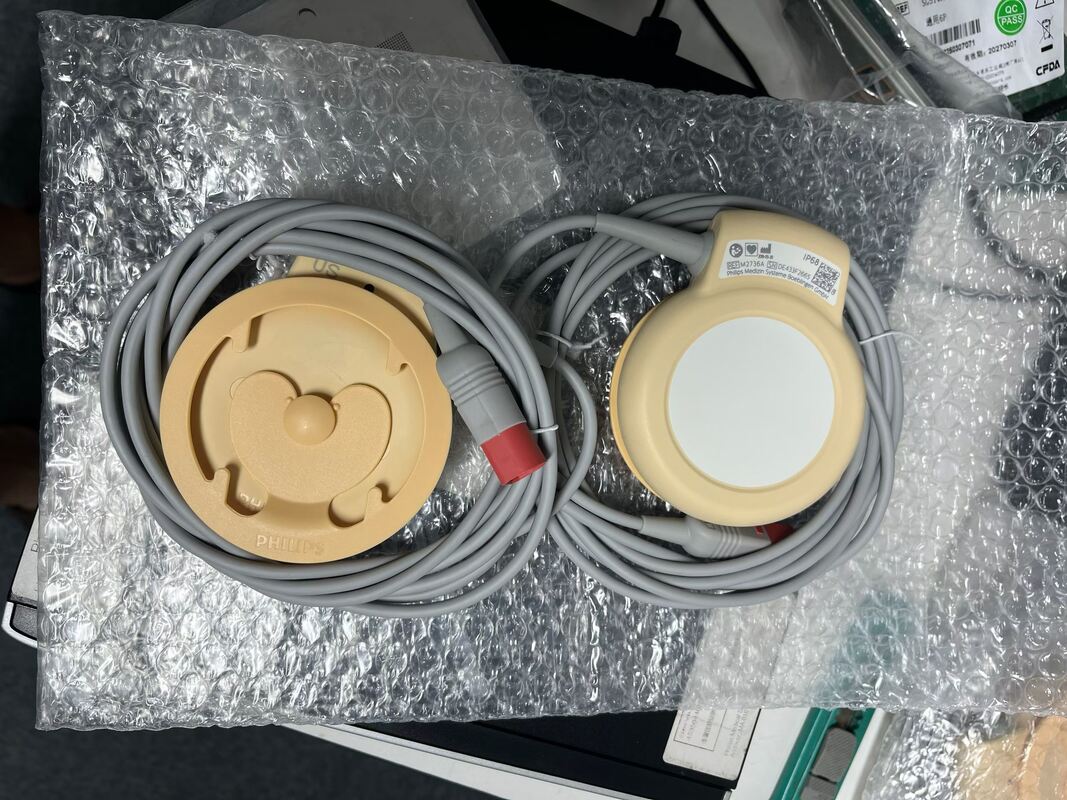

Avalon FM20/FM30/FM40/FM50 M2735A M2724B M2736A US & TOCO Philip Fetal Probe
-
- 2734B:M2734-60501
- M2735A:M2735-60501
- M2736A:M2736-60501
1. M2734B TOCO MP Transducer
- Function: Uterine contraction monitoring + maternal pulse detection
- Part Number: M2734B / 453564435211
- Connector: 8-pin D-type with red key
- Diameter: 83 mm
- Weight: Approx. 0.2 kg
- Ingress Protection: IP68, waterproof to 1m for 5 hours
- Safety Classification: Type CF, defibrillation-proof
- Operating Temperature: 0–40 °C
- Operating Humidity: 10%–95% non-condensing
- Storage Temperature: −20–60 °C
- Compatibility: Avalon FM20, FM30, FM40, FM50 Fetal Monitors
2. M2735A Smart TOCO+ Transducer
- Function: High-precision uterine contraction monitoring with maternal ECG reference
- Part Number: M2735A
- Connector: 8-pin D-type
- Feature: Smart Toco+ technology, enhanced anti-interference performance
- Dimension / Weight / IP / Environmental Specs: Same as M2734B
- Compatibility: Avalon FM20, FM30, FM40, FM50
3. M2736A Ultrasound Transducer
- Function: Doppler ultrasound for fetal heart rate (FHR) measurement
- Part Number: M2736A / 453564435241
- Connector: 8-pin D-type
- Ultrasound Frequency: 1 MHz obstetric dedicated
- FHR Detection Range: 30–240 bpm
- Dimension / Weight / IP / Environmental Specs: Same as M2734B
- Compatibility: Avalon FM20, FM30, FM40, FM50
General Common Specifications
- Cable Length: Approx. 3 m (10 ft)
- Material: Latex-free
- Certification: CE, FDA, ISO 13485
이 제품에 대한 자세한 내용을 알고 싶습니다
